Raipur Highway Entrance Steel Skywalk
A detailed steel coordination and detailing project highlighted in the CadenStar presentation.
Project details

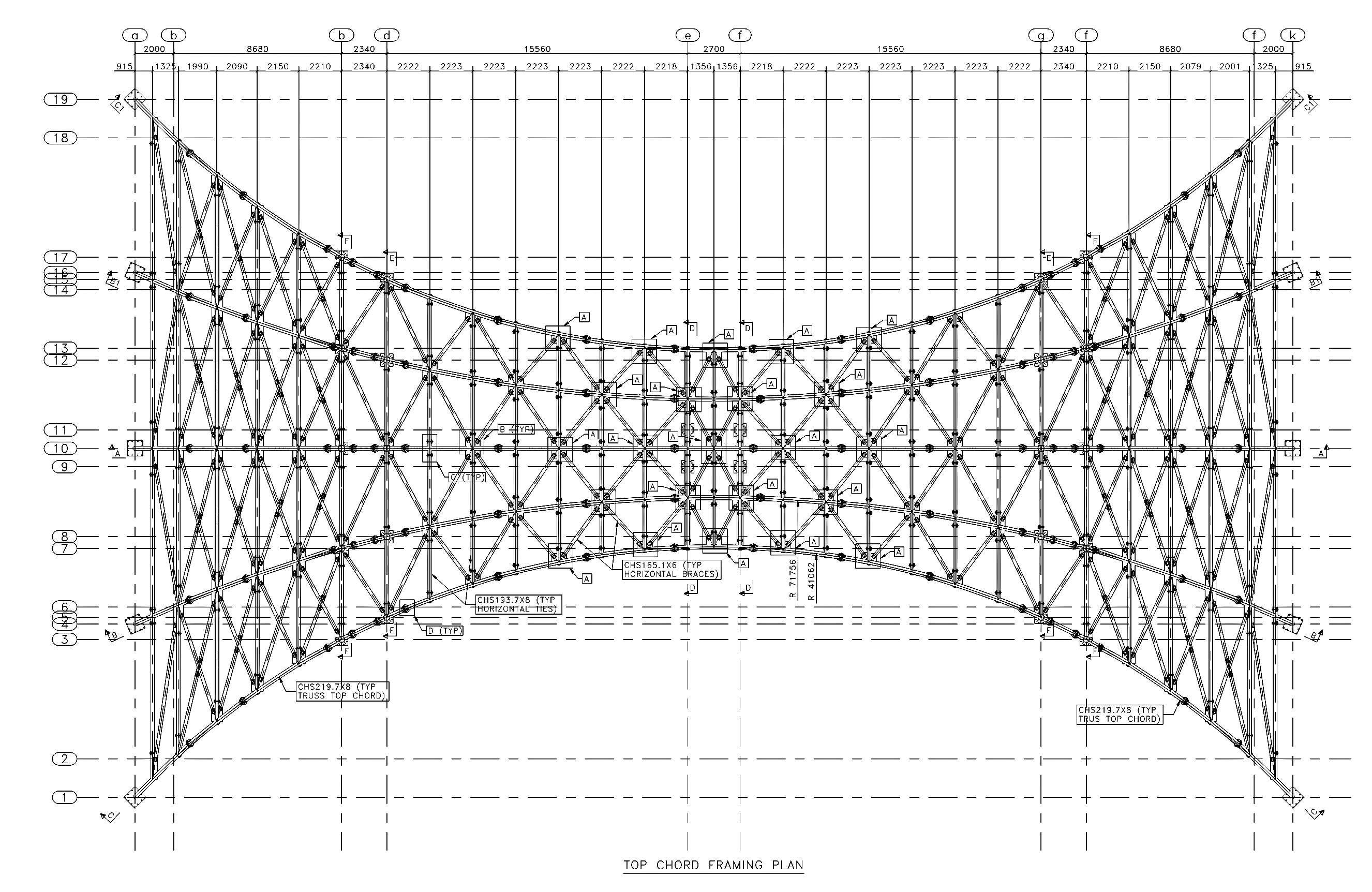

800+ junctions. 200+ tonnes of steel. 400+ drawings.
The supplied project slide presents the Raipur Highway Entrance Steel Skywalk with structural modelling, drawings and detailing supporting a complex fabricated-steel structure.
Steel scope:
200+ tonnage steel
Connections:
800+ junctions
Documentation:
400+ drawings
Hostel project
Hostel building connected with a steel skywalk.
The presentation describes a 3,60,000 sq. ft. development with Basement + 14 Floors and challenging geometry and connectivity.
Built-up Area:
3,60,000 sq. ft.
Configuration:
Basement + 14 Floors
Engineering challenge:
Complex curved basement geometry.
Site condition:
Uneven site topography requiring careful coordination and execution.
Connectivity:
Challenging skywalk integration between structures.
Coordination:
Architectural, structural and construction constraints across disciplines.
Real project experience
Selected work across steel, hospitality, education and international residential projects.
Individual project and BIM visuals from the supplied CadenStar presentation, presented as website-ready imagery rather than full presentation screenshots.
Hostel Project
360,000 sq.ft · B+14 Floors · Skywalk Integration
Educational Campus
160,000 Sq.ft · Ground + 6 Floors
Residential – UK
78,000 Sqmts
Virtual Building Studios
12,500 Sqmts
The BDX Residential – United States
5,000 Sqmts
200+
Tonnes of steel highlighted
800+
Skywalk junctions highlighted
400+
Drawings highlighted
3
Disciplines aligned in BIM
